AudioCommand Struct Reference

#include <audio_high_level_api.h>

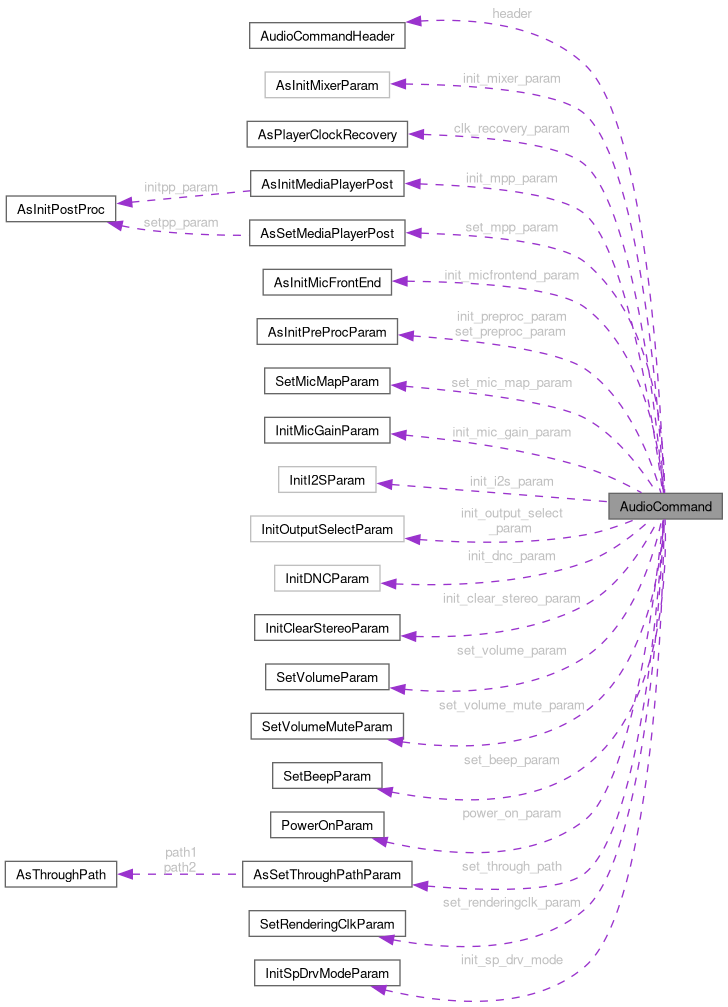

Collaboration diagram for AudioCommand:

Public Member Functions
uint8_t	getCode (void)
bool	isStateChange (void)

Public Attributes
AudioCommandHeader	header
	[in] Command Header
union {
AsInitMixerParam   init_mixer_param
	[in] for Init OutputMixer (header.command_code==AUDCMD_INIT_OUTPUTMIXER)
AsPlayerClockRecovery   clk_recovery_param
	[in] for Adjust sound period (header.command_code==AUDCMD_CLKRECOVERY)
AsInitMediaPlayerPost   init_mpp_param
	[in] for InitMPP (header.command_code==AUDCMD_INITMPP)
AsSetMediaPlayerPost   set_mpp_param
	[in] for SetMPPParam (header.command_code==AUDCMD_SETMPPPARAM)
AsInitMicFrontEnd   init_micfrontend_param
	[in] for InitMicFrontend (header.command_code==AUDCMD_INIT_MICFRONTEND)
AsInitPreProcParam   init_preproc_param
	[in] for InitPreProcessDSP (header.command_code==AUDCMD_INIT_PREPROCESS_DSP)
AsSetPreProcParam   set_preproc_param
	[in] for SetPreProcessDSP (header.command_code==AUDCMD_SET_PREPROCESS_DSP)
SetMicMapParam   set_mic_map_param
	[in] for SetMicMap (header.command_code==AUDCMD_SETMICMAP)
InitMicGainParam   init_mic_gain_param
	[in] for InitMicGain (header.command_code==AUDCMD_INITMICGAIN)
InitI2SParam   init_i2s_param
	[in] for InitI2SParam (header.command_code==AUDCMD_INITI2SPARAM) More...
InitOutputSelectParam   init_output_select_param
	[in] for InitOutputSelect (header.command_code==AUDCMD_INITOUTPUTSELECT)
InitDNCParam   init_dnc_param
	[in] for InitDNCParam (header.command_code==AUDCMD_INITDNCPARAM) More...
InitClearStereoParam   init_clear_stereo_param
	[in] for InitClearStereo (header.command_code==AUDCMD_INITCLEARSTEREO) More...
SetVolumeParam   set_volume_param
	[in] for SetVolume (header.command_code==AUDCMD_SETVOLUME)
SetVolumeMuteParam   set_volume_mute_param
	[in] for SetVolumeMute (header.command_code==AUDCMD_SETVOLUMEMUTE)
SetBeepParam   set_beep_param
	[in] for SetBeep (header.command_code==AUDCMD_SETBEEPPARAM)
PowerOnParam   power_on_param
	[in] for PowerOn (header.command_code==AUDCMD_POWERON)
AsSetThroughPathParam   set_through_path
	[in] for SetThrouhgPath (header.command_code==AUDCMD_SETTHROUGHPATH)
SetRenderingClkParam   set_renderingclk_param
	[in] for SetRenderingClk (header.command_code==AUDCMD_SETRENDERINGCLK)
InitSpDrvModeParam   init_sp_drv_mode
	[in] for InitSpDrvMode (header.command_code==AUDCMD_INITSPDRVMODE)
SetSpDrvModeParam   set_sp_drv_mode
};

Detailed Description

Audio command packet

Member Data Documentation

init_i2s_param

InitI2SParam init_i2s_param

[in] for InitI2SParam (header.command_code==AUDCMD_INITI2SPARAM)

Deprecated

It will be removed in the future

init_dnc_param

InitDNCParam init_dnc_param

[in] for InitDNCParam (header.command_code==AUDCMD_INITDNCPARAM)

Deprecated

It will be removed in the future

init_clear_stereo_param

InitClearStereoParam init_clear_stereo_param

[in] for InitClearStereo (header.command_code==AUDCMD_INITCLEARSTEREO)

Deprecated

It will be removed in the future

---

The documentation for this struct was generated from the following file:

• spresense/sdk/modules/include/audio/audio_high_level_api.h
